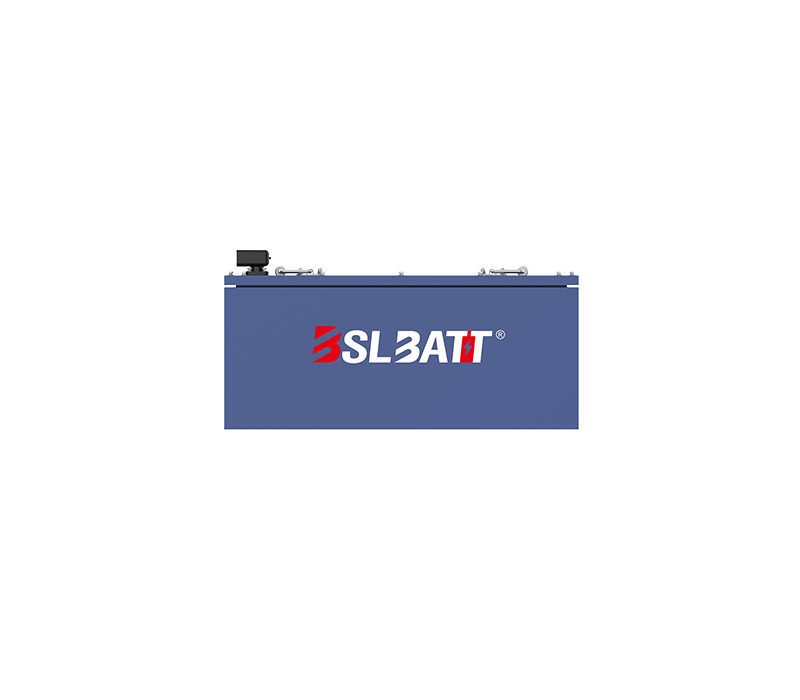

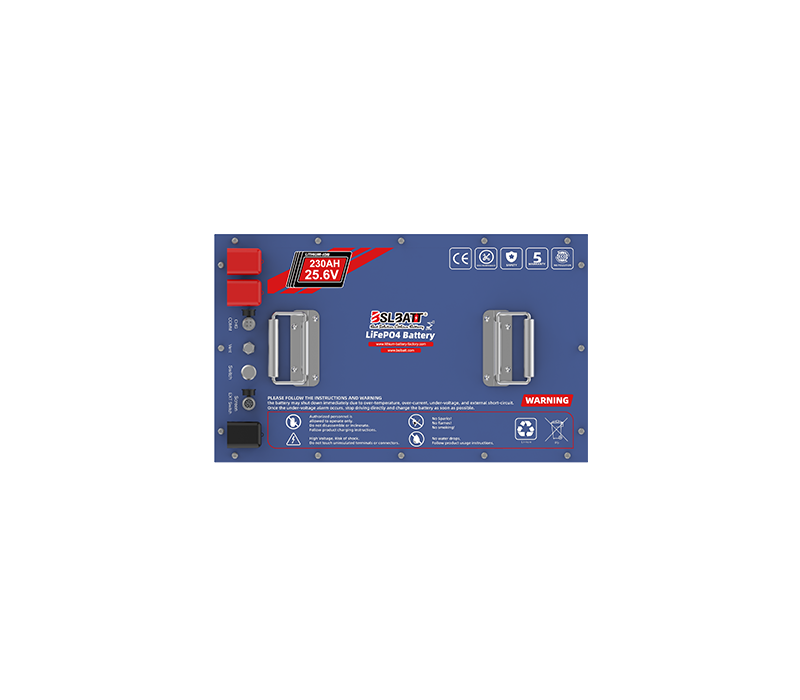

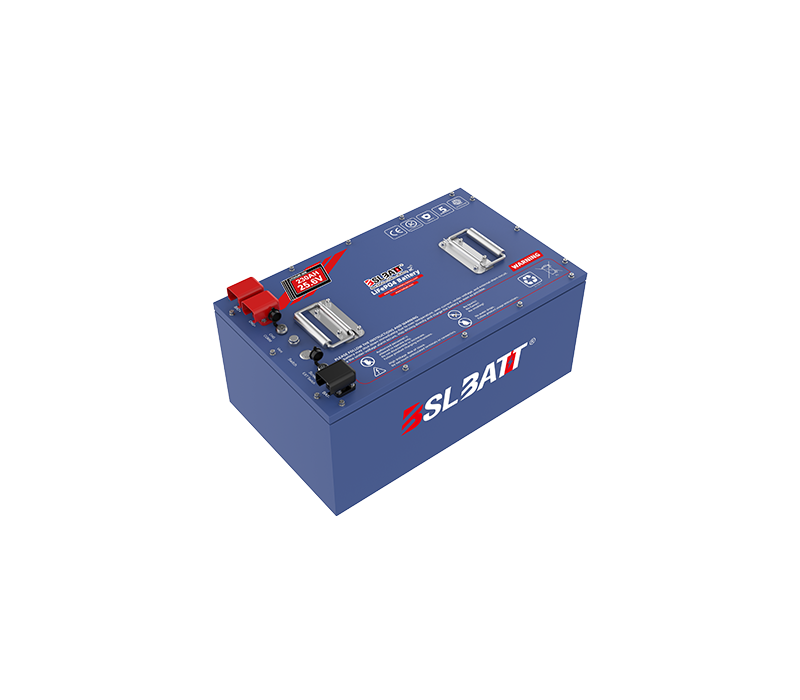

24V Lithium Ion Battery Price for Aerial Platforms | BSLBATT

Technical Specifications:

Nominal Voltage: 25.6V

Nominal Capacity: 230Ah

Stored Energy: 5.88kWh

Dimension (L×W×H): 540*330*235MM

Weight: 66kg (146lb)

Life Cycle: >4500 cycles@80% DOD

Customizable IP Rating: IP65-67

Working Current: 200A

PEAK Continuous Current(10s): 300A

  • ISO
  • ISO14001
  • _1
  • UN38.3
  • CE
  • IEC
  • Sedex
  • PICC
prod_datails_img

High-Performance Energy for Next-Generation Access Equipment

The 24V 230Ah LiFePO4 system offers a competitive 24v lithium ion battery price relative to its extended service life in aerial work platforms. With a significant energy capacity of 5.88 kWh, this unit is specifically designed for the most demanding duty cycles found in heavy-duty scissor lifts and articulated booms. Transitioning to BSLBATT technology eliminates the voltage drop common in lead-acid systems, ensuring that lift speeds and drive torque remain constant regardless of the remaining charge level.

  • Cycle Llife:  ≥ 4500 @80% DOD
  • Charge Temperature: 32°F ~ 131°F (0°C ~ 55°C)
  • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature (1 month): -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature (1 year): 32°F ~ 95°F (0°C ~ 35°C)
  • Protection Level: IP65–IP67
  • Casing Material: Iron

Maximizing Fleet Value with Maintenance-Free Power

Durability in Industrial Environments: When evaluating the 24v lithium ion battery price for aerial work platforms, the physical resilience of the system is a primary factor. Our 230Ah solution features a robust internal structure designed to withstand the high vibrations and mechanical stresses characteristic of construction sites. Backed by a 10 year warranty, this system ensures that your vertical access equipment remains a reliable asset for years to come, minimizing the need for premature replacements.

Total Cost of Ownership (TCO) Optimization: Conventional battery maintenance—such as watering and acid cleanup—increases labor costs and downtime. BSLBATT lithium solutions remove these operational burdens entirely. By switching to a maintenance-free energy platform, fleet managers can significantly lower their long-term expenditures. The initial investment is offset by improved uptime and the elimination of routine upkeep, resulting in a superior overall energy value.

prod_technical_img
  • Redefining the Standard for Performance Life

    In the professional evaluation of 24v lithium ion battery price, longevity is the most critical metric. This 230Ah unit delivers a Life Cycle of >4500 cycles at 80% Depth of Discharge. This industrial-standard endurance ensures that your power source outlasts multiple sets of lead-acid batteries, providing a stable and sustainable energy cycle for modern vertical mobility solutions.

  • High-Capacity Power Stability

    Our 24V system is engineered for high-efficiency energy delivery. For aerial work platforms, consistent hydraulic pressure is essential for safe operations. The 230Ah lithium system maintains a stable discharge curve at 25.6V, ensuring that lifting capacity and driving speeds are never compromised, even during the most intensive work shifts in complex facility environments.

  • Advanced BMS Fleet Protection

    Safety is non-negotiable in aerial operations. This BSLBATT 24v lithium ion battery price includes an integrated Smart Battery Management System (BMS). The BMS provides continuous monitoring of cell health, offering autonomous protection against thermal events, overcharging, and short circuits. This high-level protection safeguards both the vehicle’s sophisticated electronics and the personnel operating at height.

  • Fleet Visibility and Connectivity

    Modernize your equipment management with smart-enabled 24v lithium ion battery technology. With optional CANbus and Bluetooth diagnostics, maintenance teams can monitor real-time state-of-charge and overall battery health. This transparency allows for proactive maintenance scheduling and ensures that every aerial lift is fully verified and ready for mission-critical industrial tasks.

EVE A+ Grade Lithium Cells

EVE A+ Grade Lithium Cells
Core Power: Peak Performance & Stability

Our battery packs are built using world-class EVE A+ grade lithium iron phosphate cells, offering unmatched stability and discharge efficiency. These automotive-grade cells ensure high power output even during high-intensity operation, delivering a smoother and more reliable driving experience compared to standard alternatives.

Intelligent BMS Integration

Intelligent BMS Integration
Safety: Precision Battery Management

Our advanced Integrated Battery Management System (BMS) provides 24/7 proactive protection. By monitoring voltage, current, and temperature in real-time, the BMS prevents overcharging, deep discharging, and overheating. Its smart balancing technology ensures every cell stays healthy, extending the total battery life.

IP65-Rated Enclosure

IP65-Rated Enclosure
Durability: All-Weather Performance

Built to withstand the elements, our batteries feature an IP65-rated waterproof and dustproof housing. Whether operating on damp turf, through morning mist, or in dusty environments, the rugged enclosure ensures internal components remain dry and protected against high-pressure water splashes and debris.

Industry-Leading Warranty

Industry-Leading Warranty
Commitment: 10-Year Guarantee

We stand behind our engineering with a robust protection plan that reflects our confidence in product longevity. We provide long-term security for your fleet, ensuring your investment is protected year after year.

Global Safety Certifications

Global Safety Certifications
Compliance: Meeting International Standards

Our lithium batteries are rigorously tested and fully compliant with the world’s most stringent safety and quality regulations. This ensures safe operation and hassle-free international shipping. Key Certifications: UL, CE, IEC, and UN38.3.
