  • AGV Lithium Battery 51.2V 105Ah for Automated Guided Vehicles

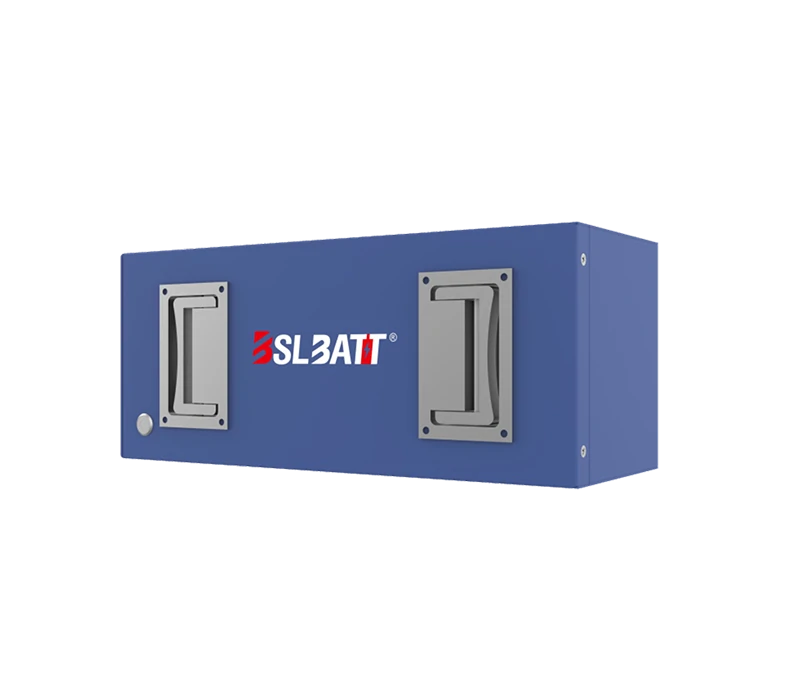

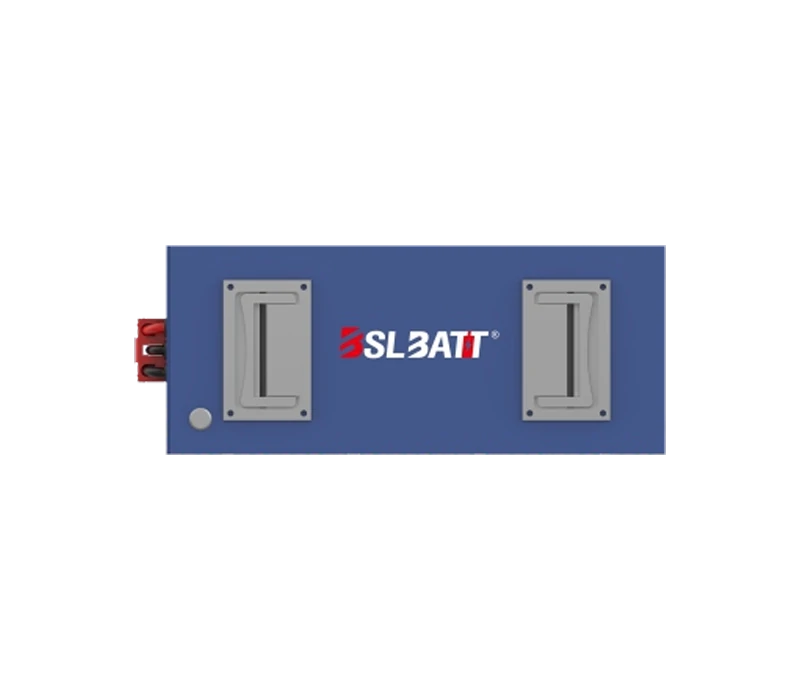

AGV Lithium Battery 51.2V 105Ah for Automated Guided Vehicles

Technical Specifications:

Nominal Voltage: 51.2V

Nominal Capacity: 105Ah

Stored Energy: 5.37 kWh

Dimension (L×W×H): Customizable

Cycle Life: ≥4000 cycles @ 80% DOD

Design Life: 15 years

Protection Level: IP65 (IP67 optional)

Charging Temperature: 0°C ~ 55°C (32°F ~ 131°F)

Discharging Temperature: -20°C ~ 55°C (-4°F ~ 131°F)

Communication: 4G remote monitoring, CANbus/RS485, Bluetooth (optional)

Warranty: 5-year / 10,000h limited warranty

  • ISO14001
  • _1
  • UN38.3
  • CE
  • IEC
  • Sedex
  • PICC
prod_datails_img

Purpose-Built Power for 24/7 Automated Logistics

The 51.2V 105Ah LiFePO4 battery system is engineered specifically for AGV (Automated Guided Vehicle) and AMR (Autonomous Mobile Robot) platforms, delivering 5.37 kWh of usable, consistent energy in a compact, modular footprint. Traditional lead-acid power forces fleet operators into slow charging, frequent maintenance, and short service life — three problems that directly cut into robot uptime and warehouse throughput. By integrating BSLBATT’s fully modular LiFePO4 pack, Smart BMS, and integrated Power Distribution Unit (PDU), facility and robotics teams can run multi-shift operations with opportunistic charging, eliminating dedicated battery-swap rooms and keeping automated fleets moving around the clock.

  • Battery Technology: Lithium Iron Phosphate (LiFePO4), modular pack architecture
  • System Components: Modular LiFePO4 battery packs + Smart BMS + Integrated PDU
  • Charging: Fast charging & opportunity charging (charge during breaks, lunch, and shift changes); compatible with Delta-Q charging protocol via BSLBATT original chargers
  • Communication: 4G remote monitoring and diagnostics, CANbus/RS485, optional Bluetooth, SOC display
  • Protection: IP65 standard / IP67 optional, vibration- and shock-resistant enclosure
  • Compatibility: Fits Tugger AGVs, Unit Load AGVs, Forklift AGVs, Pallet Truck AGVs, Assembly Line AGVs, AMR Pallet Movers, AMR Shelf/Cart Carriers, AMR Forklifts, AMR Sortation Robots, AMR Conveyor Top Modules

Cutting the Total Cost of Ownership BehindEvery Automated Fleet

Stop Paying the Lead-Acid Tax: For most AGV/AMR fleets still running lead-acid, the real cost isn’t the battery — it’s the slow charging, the frequent replacements, the maintenance labor, and the voltage drop that quietly saps performance under load. Our 51.2V 105Ah pack is backed by a 5-year/10,000h warranty and rated for ≥4000 cycles at 80% DOD, built on a 15-year design life. Because there’s no reduction in power as state-of-charge drops, robots keep full torque and speed from the first task of the shift to the last — no swapping, no dead time, no degraded performance at the end of a run.

Built for the Realities of the Warehouse Floor: Automated fleets operate in dusty, humid, and vibration-heavy environments that lead-acid and even some lithium systems struggle with. This pack is rated IP65 (IP67 optional) with a vibration- and shock-resistant enclosure, so it keeps operating reliably through automated logistics and manufacturing environments. There’s no water to add, no acid to manage, and no odor — just a sealed, maintenance-free power source that removes an entire category of facility upkeep.

prod_technical_img
  • Eliminate Battery Swapping and Downtime

    The single biggest drag on AGV/AMR fleet productivity is the lead-acid swap cycle — pulling a robot offline, hauling a heavy battery, waiting for a slow recharge. This 51.2V 105Ah LiFePO4 pack is designed for opportunistic charging: top it up during coffee breaks, lunch, or shift changes, and it's ready to go the moment the robot is needed. No dedicated charging room, no replacement accidents, no lost production hours.

  • Consistent Power From First Task to Last

    Lead-acid batteries lose usable power as they discharge, forcing robots to slow down or stop early. Our LiFePO4 system holds a flat discharge curve, so navigation accuracy, lift force, and drive speed stay the same at 20% state-of-charge as they do at 90%. Fleet managers get predictable, repeatable performance across every shift — a critical requirement for AGVs and AMRs running on tight logistics schedules.

  • Modular Design That Fits Any Platform

    AGV and AMR chassis come in dozens of shapes and space constraints — tuggers, pallet movers, forklifts, conveyor-top units. The modular LiFePO4 pack and separately configurable PDU let integrators size and place power exactly where it's needed, without redesigning the vehicle around an oversized, fixed battery. Capacity, dimensions, and PDU configuration are all customizable to match your platform.

  • Smart, Connected Fleet Management

    Every pack ships with a self-developed Smart BMS providing multi-layer protection against over-current, over-charge, and thermal issues, plus real-time SOC display for at-a-glance status checks. Optional 4G remote monitoring and Bluetooth connectivity let fleet technicians track battery health, diagnose faults, and plan maintenance remotely — turning power management from a manual chore into a predictive, data-driven process.

EVE A+ Grade Lithium Cells

EVE A+ Grade Lithium Cells
Core Power: Peak Performance & Stability

Our battery packs are built using world-class EVE A+ grade lithium iron phosphate cells, offering unmatched stability and discharge efficiency. These automotive-grade cells ensure high power output even during high-intensity operation, delivering a smoother and more reliable driving experience compared to standard alternatives.

Ultra-Long Cycle Life

Ultra-Long Cycle Life
Efficiency: 4000+ Cycles @ 80% DOD

Maximize your ROI with a lifespan designed to last a decade. With over 4,000 cycles at 80% Depth of Discharge (DOD), this battery outlasts traditional lead-acid batteries by more than 10 times. It is the ultimate cost-effective solution for fleet managers and private owners seeking long-term durability.

Intelligent BMS Integration

Intelligent BMS Integration
Safety: Precision Battery Management

Our advanced Integrated Battery Management System (BMS) provides 24/7 proactive protection. By monitoring voltage, current, and temperature in real-time, the BMS prevents overcharging, deep discharging, and overheating. Its smart balancing technology ensures every cell stays healthy, extending the total battery life.

Industry-Leading Warranty

Industry-Leading Warranty
Commitment: 5-Year Guarantee

We stand behind our engineering with a robust protection plan that reflects our confidence in product longevity. We provide long-term security for your fleet, ensuring your investment is protected year after year.

IP65-Rated Enclosure

IP65-Rated Enclosure
Durability: All-Weather Performance

Built to withstand the elements, our batteries feature an IP65-rated waterproof and dustproof housing. Whether operating on damp turf, through morning mist, or in dusty environments, the rugged enclosure ensures internal components remain dry and protected against high-pressure water splashes and debris.

Global Safety Certifications

Global Safety Certifications
Compliance: Meeting International Standards

Our lithium batteries are rigorously tested and fully compliant with the world’s most stringent safety and quality regulations. This ensures safe operation and hassle-free international shipping. Key Certifications: UL, CE, IEC, and UN38.3.
