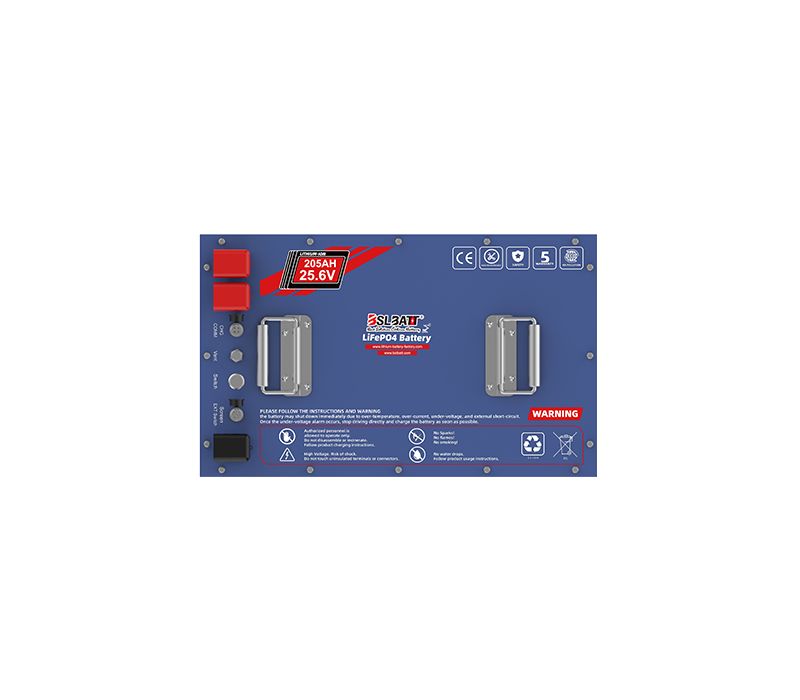

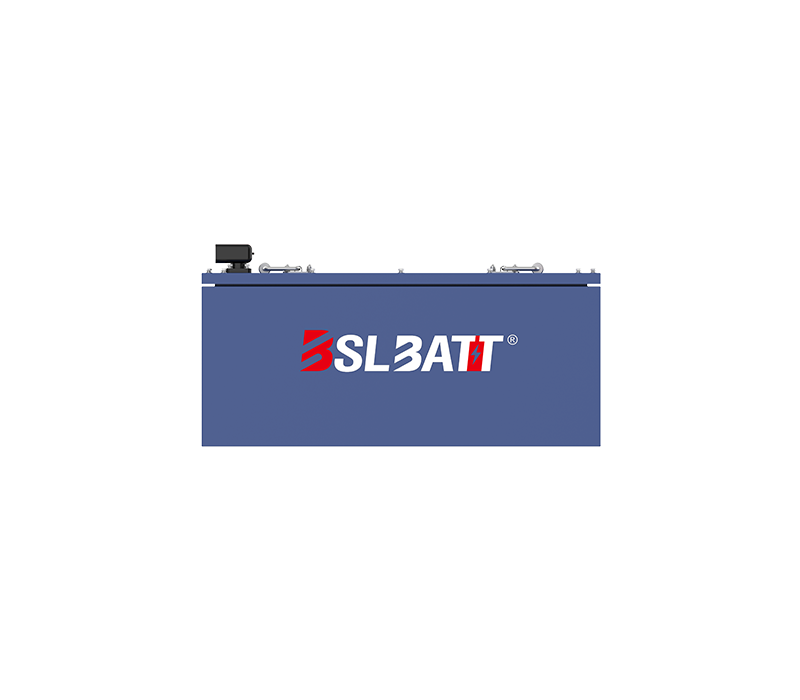

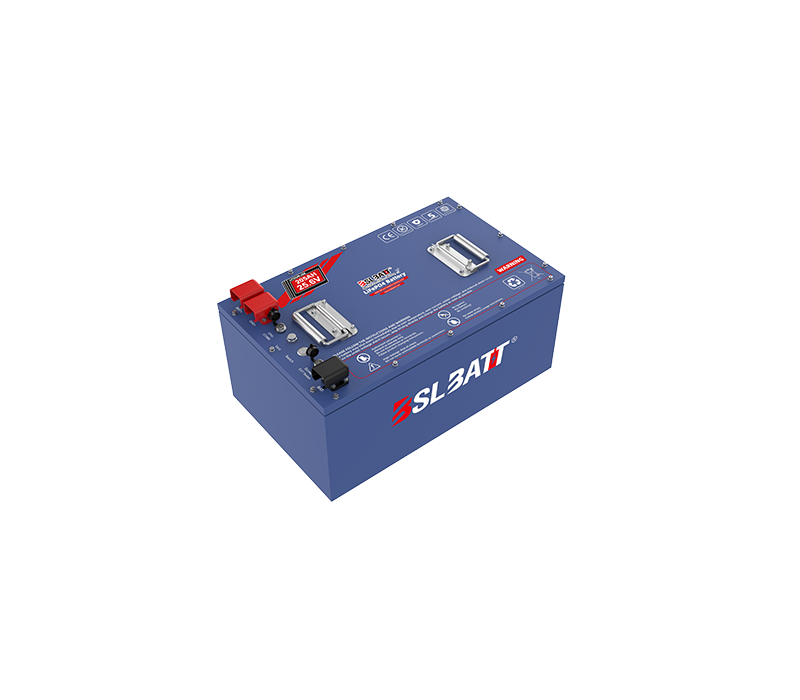

24V 200Ah LiFePO4 Battery for Aerial Work Platforms | BSLBATT

Technical Specifications:

Nominal Voltage: 25.6V

Nominal Capacity: 205Ah

Stored Energy: 5.24kWh

Dimension (L×W×H): 540*330*235MM

Weight: 63kg (139lb)

Life Cycle: >4500 cycles@80% DOD

Customizable IP Rating: IP65-67

Working Current: 200A

PEAK Continuous Current(10s): 300A

  • ISO
  • ISO14001
  • _1
  • UN38.3
  • CE
  • IEC
  • Sedex
  • PICC
prod_datails_img

Robust Energy for Extended-Shift Access Operations

The 24V 205Ah lithium-ion system is a heavy-duty solution within the 24v 200ah lifepo4 battery category, specifically engineered for the rigorous demands of aerial work platforms. With a total energy capacity of 5.24 kWh, this power pack provides the necessary endurance for high-frequency lifting and long-distance travel on industrial sites. By utilizing BSLBATT technology, fleets can maintain a constant voltage platform, ensuring predictable machine behavior even as the battery nears the end of its discharge cycle.

  • Cycle Llife:  ≥ 4500 @80% DOD
  • Charge Temperature: 32°F ~ 131°F (0°C ~ 55°C)
  • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature (1 month): -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature (1 year): 32°F ~ 95°F (0°C ~ 35°C)
  • Protection Level: IP65–IP67
  • Casing Material: Iron

Optimizing Rental Assets with Maintenance-Free LiFePO4 Chemistry

Exceptional Mechanical Reliability: In the technical management of 24v 200ah lifepo4 battery systems, resistance to vibration and mechanical stress is vital for aerial work platforms. Our lifepo4 battery  solution is constructed with a reinforced internal structure and backed by a 10 years warranty. The system is designed to withstand the harsh environments of construction sites, providing stable power for precision maneuvers at height without the risk of sudden voltage drops.

Economic Value for Fleet Operators: Conventional batteries require labor-intensive watering and frequent cleaning to prevent corrosion. BSLBATT lithium solutions eliminate these manual requirements, effectively removing the possibility of acid damage to vehicle chassis. This shift to a maintenance-free energy platform reduces long-term operational costs and enhances the Total Cost of Ownership, making it a strategic choice for large-scale rental fleets and facility management.

prod_technical_img
  • Redefining the Standard for Performance Life

    Durability is the primary metric for 24v 200ah lifepo4 battery performance. This 24v lithium battery unit offers a Life Cycle of >4500 cycles at 80% Depth of Discharge. This longevity ensures that the energy storage system remains a productive asset for over a decade, outperforming traditional deep-cycle alternatives and providing a sustainable energy cycle for modern vertical access equipment.

  • High-Capacity Power Stability

    Our 24V LiFePO4 system is optimized for high-current discharge. In the context of aerial work platforms, consistent power is essential for both hydraulic lifting and traction. The LiFePO4 system maintains a linear discharge curve, ensuring that the machine's drive speed and lifting capacity do not diminish, providing full-speed operation regardless of the battery's remaining capacity.

  • Advanced BMS Fleet Protection

    Safety remains the paramount concern for aerial work platforms. This BSLBATT 24v 200ah lifepo4 battery is equipped with a sophisticated Smart Battery Management System (BMS). The BMS autonomously monitors temperature, voltage, and current across all cells, providing proactive protection against thermal events and electrical irregularities to safeguard both the equipment and the personnel.

  • Future-Ready Fleet Diagnostics

    Enhance fleet visibility with modern 24v 200ah lifepo4 battery technology. With optional CANbus and Bluetooth connectivity, maintenance teams can access real-time health data and state-of-charge metrics through professional diagnostic tools. This data-driven capability supports predictive maintenance strategies, ensuring that every aerial lift is fully verified and ready for demanding industrial tasks.

EVE A+ Grade Lithium Cells

EVE A+ Grade Lithium Cells
Core Power: Peak Performance & Stability

Our battery packs are built using world-class EVE A+ grade lithium iron phosphate cells, offering unmatched stability and discharge efficiency. These automotive-grade cells ensure high power output even during high-intensity operation, delivering a smoother and more reliable driving experience compared to standard alternatives.

Intelligent BMS Integration

Intelligent BMS Integration
Safety: Precision Battery Management

Our advanced Integrated Battery Management System (BMS) provides 24/7 proactive protection. By monitoring voltage, current, and temperature in real-time, the BMS prevents overcharging, deep discharging, and overheating. Its smart balancing technology ensures every cell stays healthy, extending the total battery life.

IP65-Rated Enclosure

IP65-Rated Enclosure
Durability: All-Weather Performance

Built to withstand the elements, our batteries feature an IP65-rated waterproof and dustproof housing. Whether operating on damp turf, through morning mist, or in dusty environments, the rugged enclosure ensures internal components remain dry and protected against high-pressure water splashes and debris.

Industry-Leading Warranty

Industry-Leading Warranty
Commitment: 10-Year Guarantee

We stand behind our engineering with a robust protection plan that reflects our confidence in product longevity. We provide long-term security for your fleet, ensuring your investment is protected year after year.

Global Safety Certifications

Global Safety Certifications
Compliance: Meeting International Standards

Our lithium batteries are rigorously tested and fully compliant with the world’s most stringent safety and quality regulations. This ensures safe operation and hassle-free international shipping. Key Certifications: UL, CE, IEC, and UN38.3.
